Welt G90 2025

Gravel bikes

Pragmatic and versatile gravel bike offering comfort on rough terrain: 1x10 drivetrain and carbon fork

Color:

Frame size:

Wheel Size:

Get off track & explore more with comfort

Purposes

For confident and comfortable exploration of gravel roads, forest trails and rough terrain

Adventure Terrain

Off-road, gravel, trails, forest

Key highlights

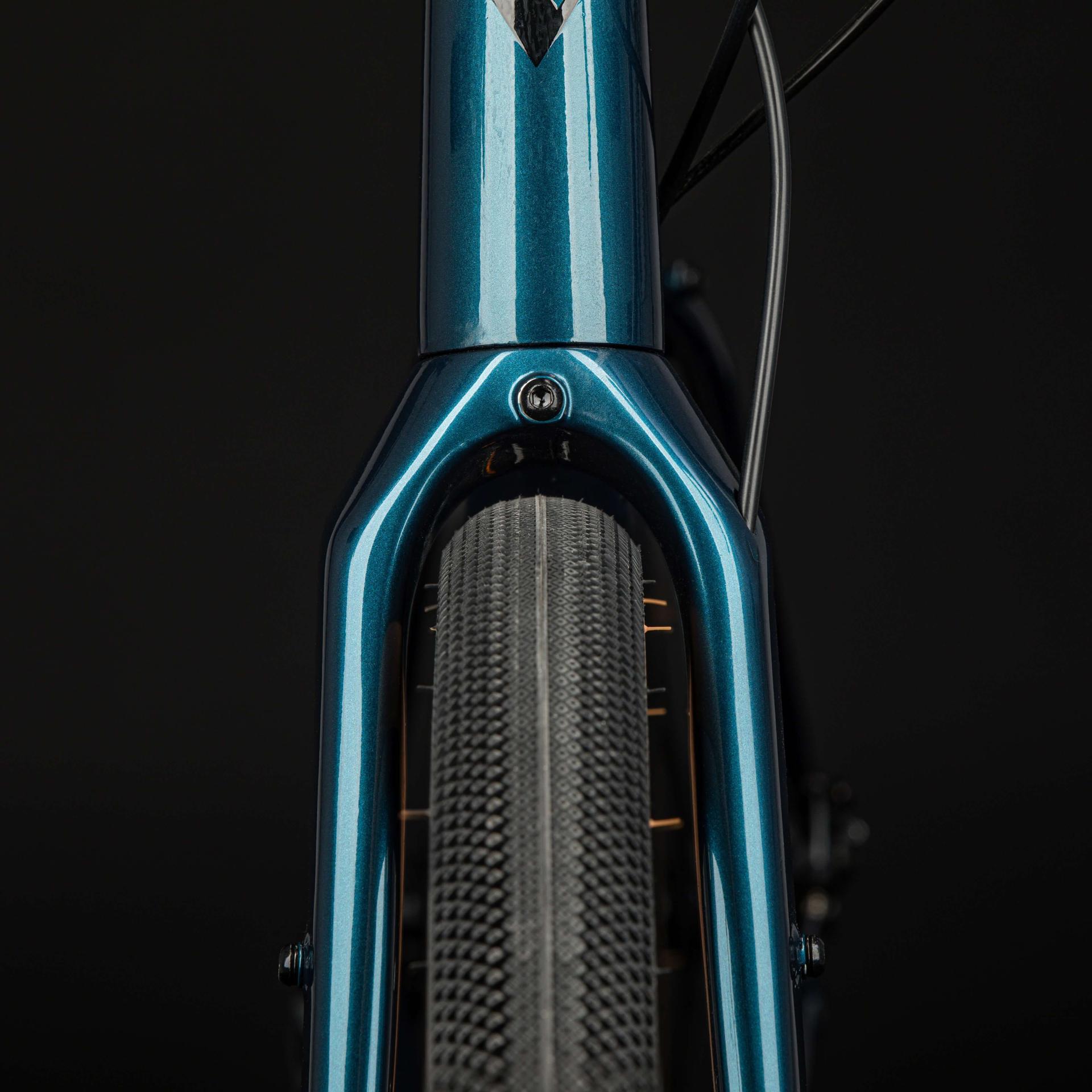

Lightweight carbon fork with mounting eyelets.
Lightweight and easy maintainable 1x10 drivetrain.
Frame and fork on axles for better reliability.
Hubs with sealed bearings for better coasting.

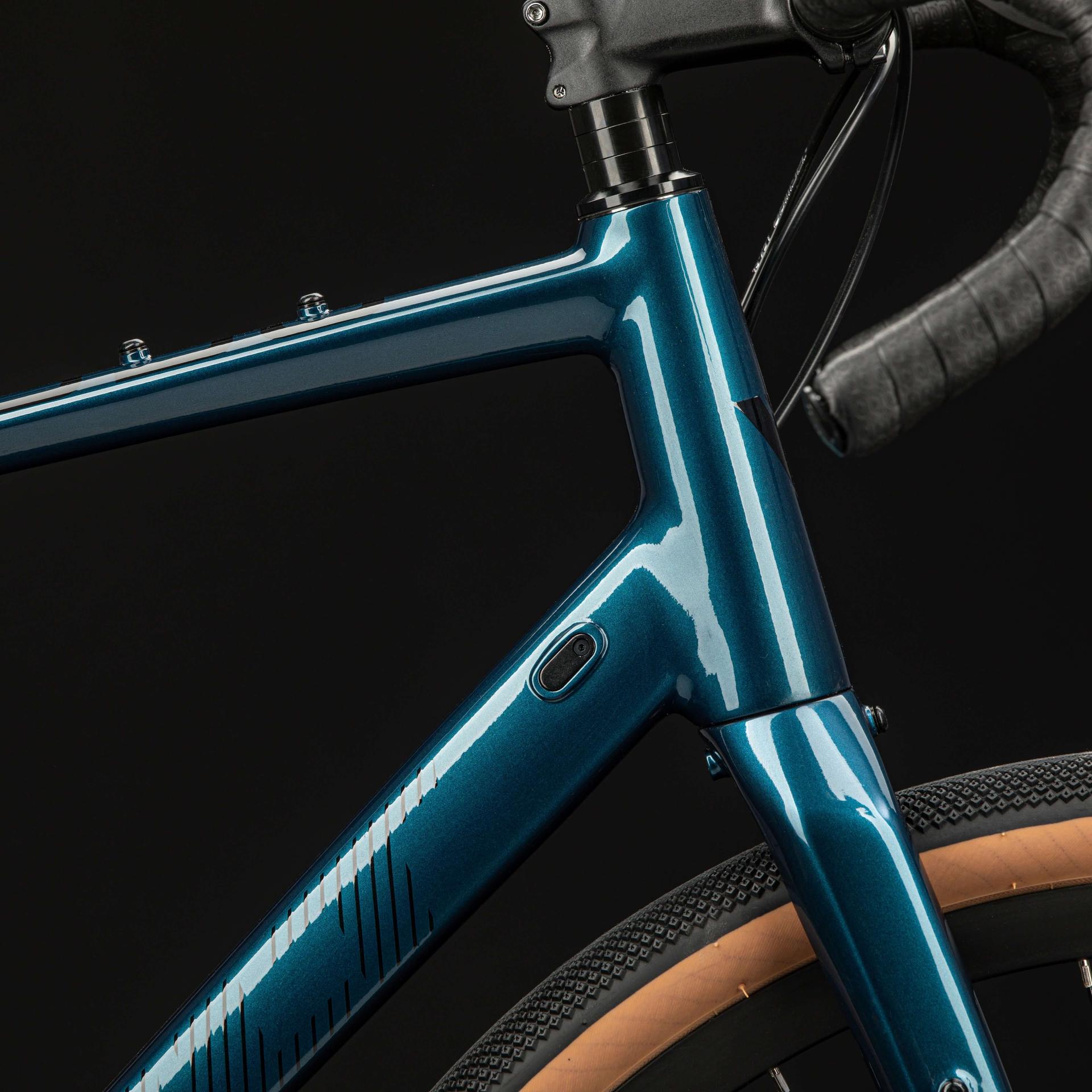

Aesthetic smooth frame thanks to a special technique of the main tubes welding.
Inner cable routing to protect units.

Welt G90

Share this passion for off-road adventures. Set out on your first true gravel trips with the G90.

Microshift 1x drivetrain with a single front chainring offers less weight and optimal maintainance. Mechanical disc brakes are easy to maintain and effective at the entry level into gravel adventures. The carbon fork damps road vibrations and reduces the overall weight of the bike. A huge number of mounting eyelets allows you to carry literally everything you need for a long trip and go beyond the usual standards.

Key Features

Optimal gear shifting in off-road conditions

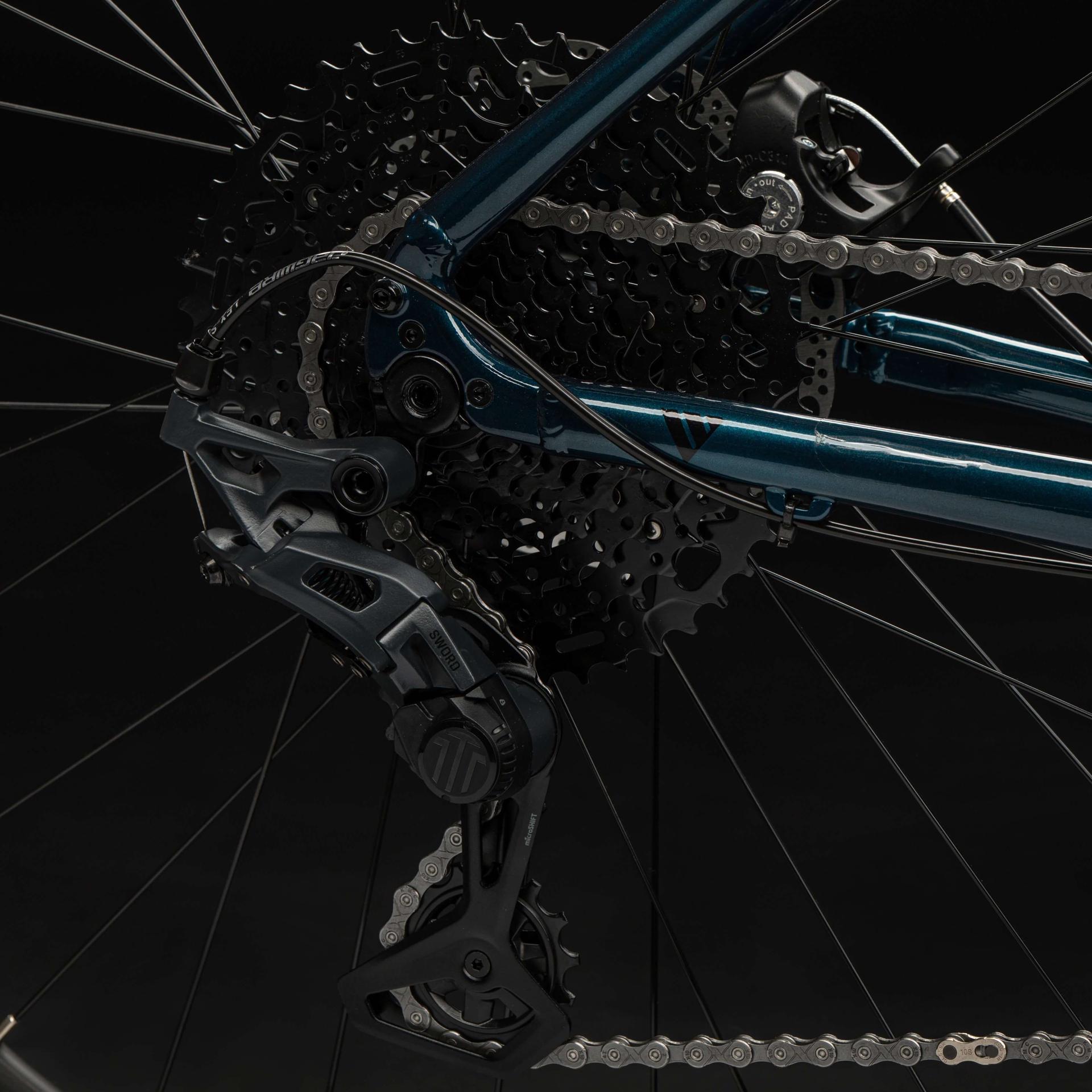

Microshift 10 drivetrain, rear derailleur with friction clutch. Durability and simple maintainance.

More stability and less weight

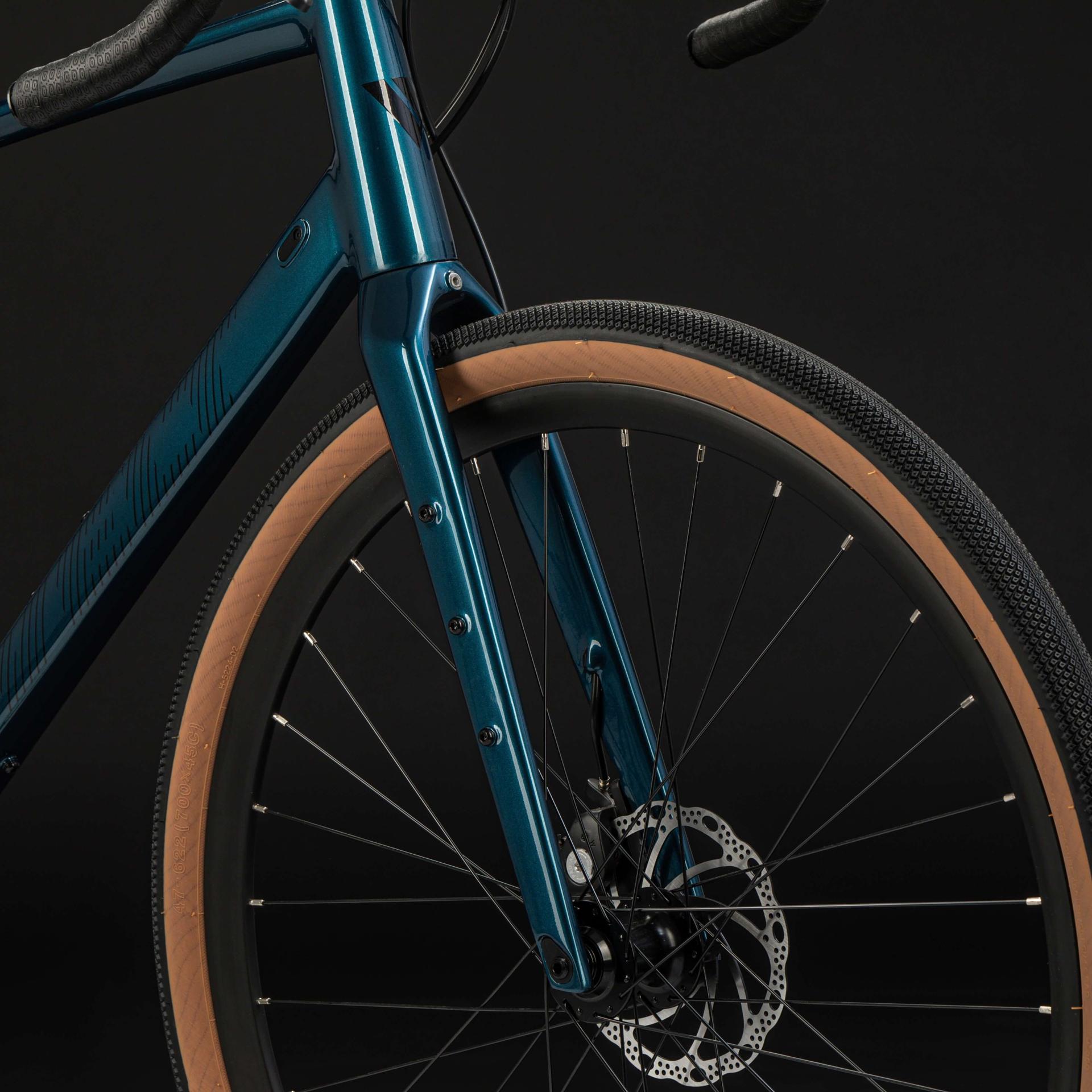

Less weight of the entire construction and effective absorption of vibrations.

Stow everything you need on the frame

Besides traditional ways of attaching your gear, the G Series frame and fork are equipped with a huge number of mounting eyelets, so you can carry everything you need for a long bikepacking trip.

More comfort - less fatigue

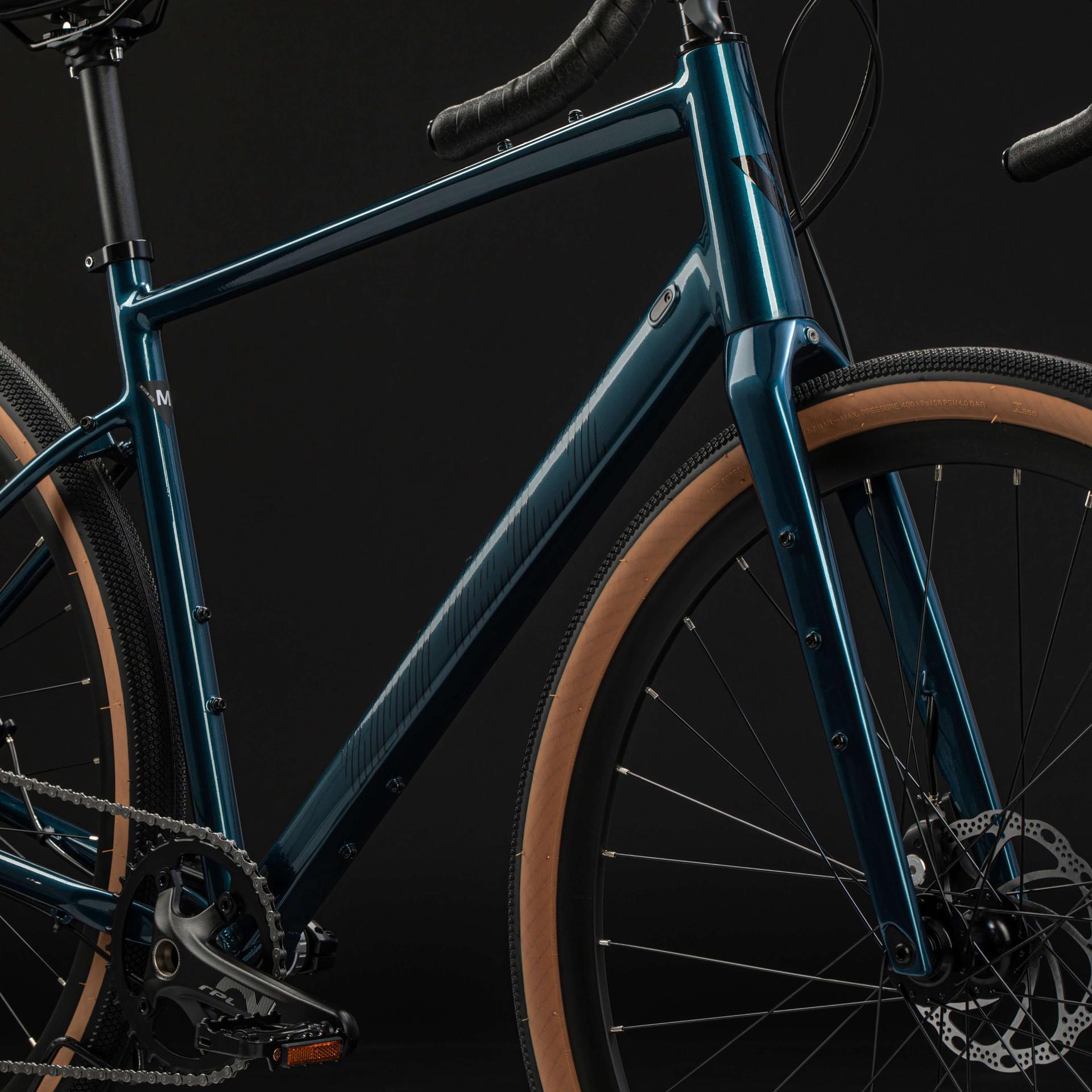

The geometry of the aluminium frame makes for a comfortable ride over long distances. High responsiveness while riding.

Tires are even wider

Possibility to install tires up to 45 mm.

Shine even in difficult conditions

Jointless connections of the main frame tubes, inner cable routing, wheel mounting with hollow axles, carbon fork for more comfort and less weight of the bike.

Great choice for:

For aficionados firm in their desire to explore rough terrain. From local trails to long-distance adventures.

Specs

Frame set

Frame

Alloy 6061

Fork

Carbon rigid fork steerer, cablehousing routing

Fork type

Rigid

Fork travel

Wheels & Tires

Rims

DR27, Tubeless ready

Wheel Size

700c

Hubs

DH906T

Tires

Chaoyang H-5224

Tire Width

45с

Drivetrain

Rear Derailleur

Microshift Sword RD-G7005-M

Front Derailleur

Shifters

Microshift Sword SB-G7000

Crankset

Prowheel RPL-FD16S-F-TT: Hollow axle, 42T

Gears

Brakes

Brakes type

Mechanical disk

Brake front

Tektro MD-C310

Brake rear

Tektro MD-C310

Extra

Handlebars

JH-D03: Gravel Alu Dropbar -Width:440mm, Reach:80mm, Drop:125mm, Flare:20 degree

Saddle

K-280, Gravel edition

*Technical characteristics given for information only, subject to modification

Sizing table

Frame size letter	S	M	L	XL
Wheel size	700с	700с	700с	700с
A — Seat tube height (mm)	470	500	530	560
B - Effective top tube (mm)	550	576	588	601
C - Chain stay length (mm)	440	440	440	440
D - Head tube angle (degree)	71,75	71,75	71,75	71,75
E - Seat tube angle (degree)	73,5	73,5	73,5	73,5
F - Bottom bracket drop (mm)	80	80	80	80
G - Head tube lenght (mm)	160	180	200	210
H - Reach (mm)	598	616	636	645
I - Stack (mm)	373	393	400	410
J - Wheelbase (mm)	1027	1053	1066	1076
